SLI/LMI/RCI Solution for
Tower Crane
USP’s
Lifted-load display
Multi-lingual annunciation
Easy to install
Radius display
Hooter
Mobile app

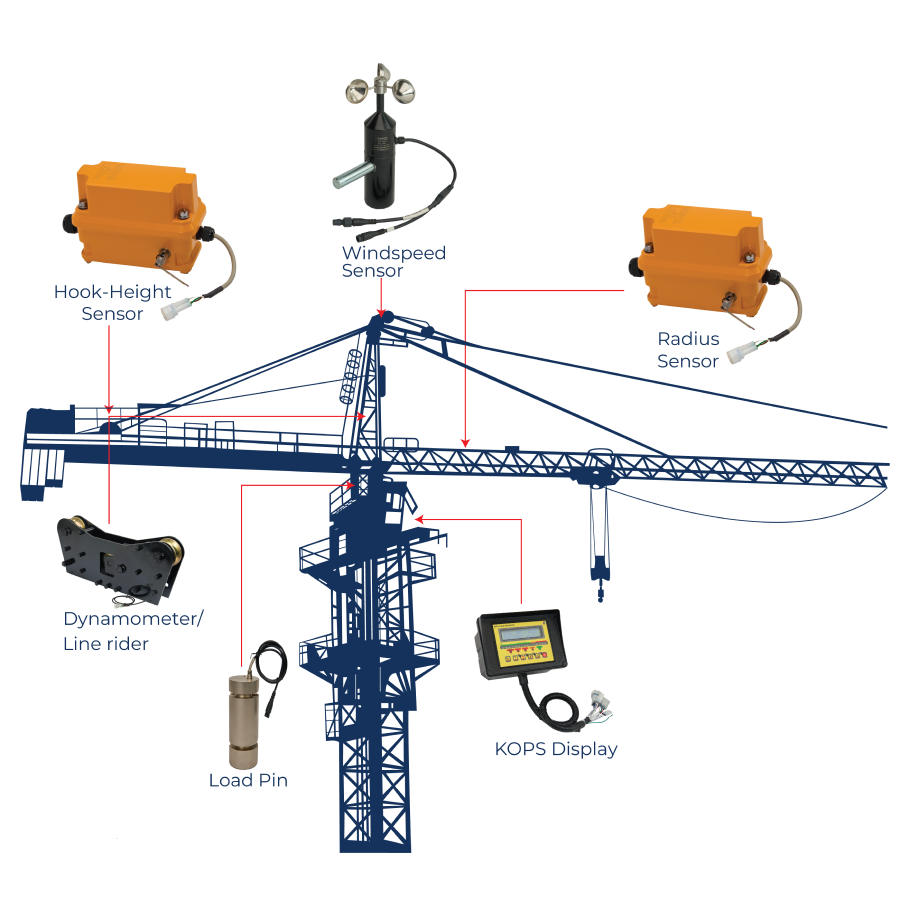

Klug Avalon’s SLI Solution encompasses all critical safety factors to ensure the safe functioning of the tower cranes. It offers a load pin for measuring the load in place of a line-rider load sensor. This increases the accuracy of the SLI and decreases the wear and tear caused to the wire rope.
Load measuring option (optional) (Only for OEMs)
An additional load pin, usually customised for the crane, provided for sensing the lifted load.*
This enables greater accuracy in lifted load calculation and eliminates the need for a line rider (dynamometer), thus preventing wear and tear of the wire rope.
Additional integrable sensors (optional)
- Anemometer to indicate wind speed.
- Hook-height Sensor.
* Customisation can increase lead time.
Technical specifications
| Power supply | 9-30 V Crane Battery |
| 9-30 V Crane Battery | Operating temperature range: 0° Celsius to +60° Celsius. Storage temperature range: -10° Celsius to +80° Celsius. |
| Accuracy | /- 5% or better. |
| Data logger facility | Storage capacity up to 100000 lift data |
| Relay output (for cut-off) | 12V or 24V |
| IP protection | IP 65 |
| Serial port output | RS232 output (optional) |
