SLI/LMI/RCI Solution for
Container Handler/Reach Stacker Crane
USP’s
Lifted-load display
Multi-lingual annunciation
Easy to install
Radius display
Hooter
Mobile app

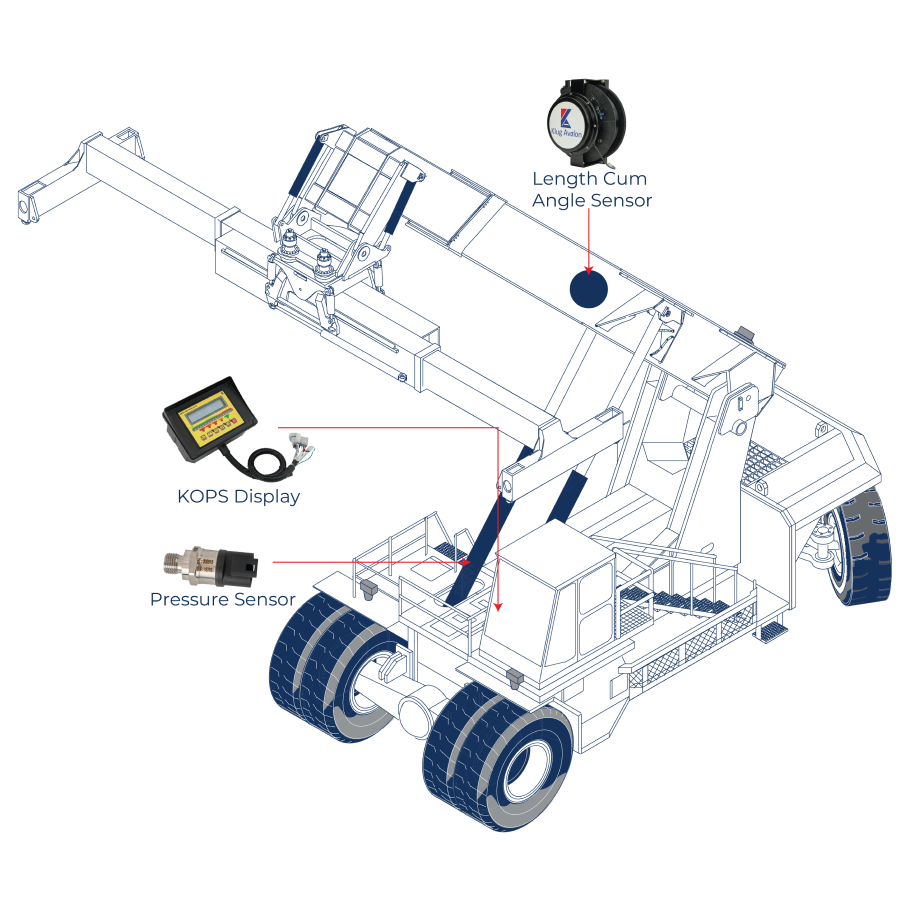

Klug Avalon’s SLI Solution for container-handler cranes provides a high-precision pressure-based load measurement option to counter overloading. The solution takes into account a wide range of parameters, such as boom length, radius, duty, etc., to deliver a proper weight assessment of the load.
Pressure-based load measurement (optional)
- Dead weights not required for calibration.
- No welding of load sensor to the crane boom. This prevents boom damage.
- Line-rider (dynamometer) is not required. This prevents wire-rope wear & tear.
- High accuracy of load measurement.
Technical specifications
| Power supply | 9-30 V Crane Battery |
| 9-30 V Crane Battery | Operating temperature range: 0° Celsius to +60° Celsius. Storage temperature range: -10° Celsius to +80° Celsius. |
| Accuracy | /- 5% or better. |
| Data logger facility | Storage capacity up to 100000 lift data |
| Relay output (for cut-off) | 12V or 24V |
| IP protection | IP 65 |
| Serial port output | RS232 output (optional) |
