SLI/LMI/RCI Solution for
Pipe-Layer Crane
USP’s
Lifted-load display
Multi-lingual annunciation
Easy to install
Radius display
Hooter
Mobile app

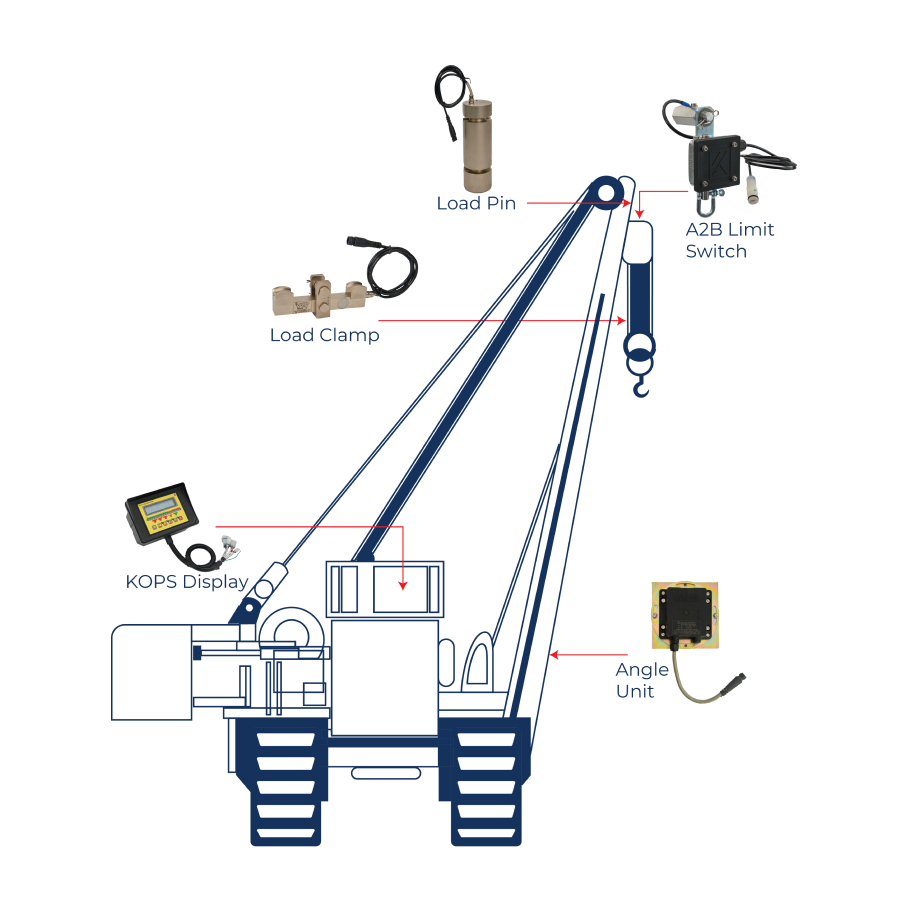

Klug Avalon’s SLI Solution for pipe-layer cranes is designed for high safety. It offers a load pin sensor for measuring the load as an alternative to the load clamp. This increases the accuracy of the SLI.
Optional load measurement
An additional load pin, usually customised for the crane, provided for sensing the lifted load. *
This enhances the load measurement accuracy and eliminates the need for a line rider (dynamometer), thus preventing wear and tear of the wire rope.
* Customisation can increase lead time.
Technical specifications
| Power supply | 9-30 V Crane Battery |
| 9-30 V Crane Battery | Operating temperature range: 0° Celsius to +60° Celsius. Storage temperature range: -10° Celsius to +80° Celsius. |
| Accuracy | /- 5% or better. |
| Data logger facility | Storage capacity up to 100000 lift data |
| Relay output (for cut-off) | 12V or 24V |
| IP protection | IP 65 |
| Serial port output | RS232 output (optional) |
