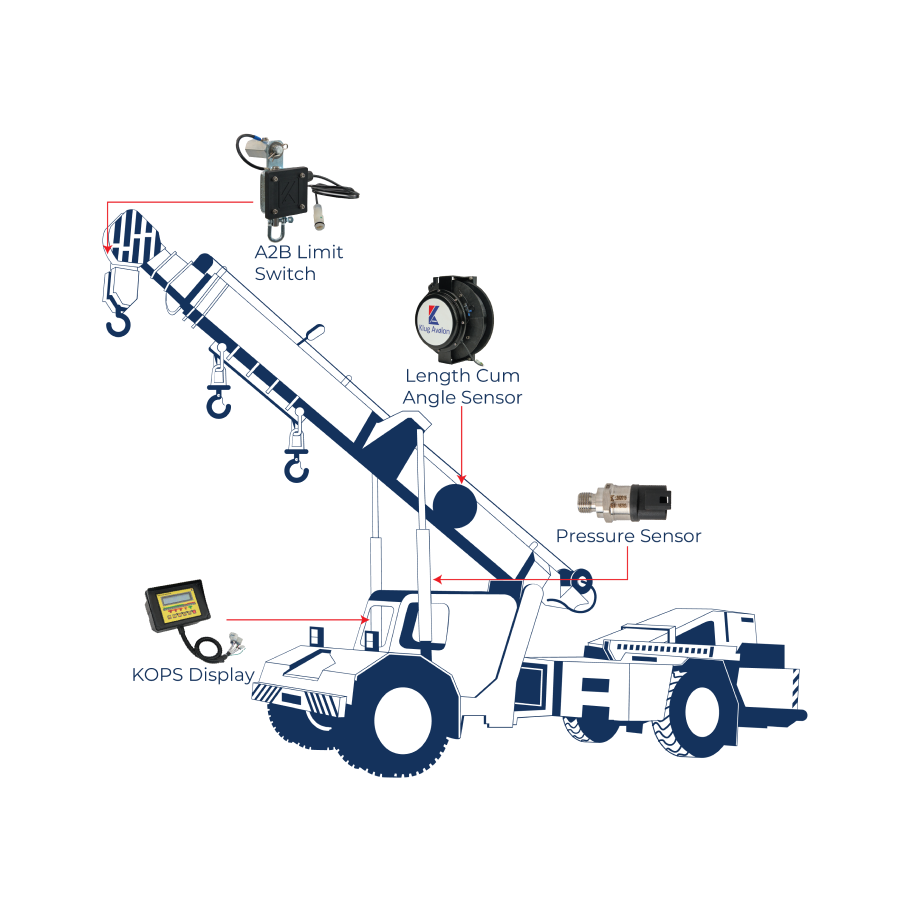

Klug Avalon's SLI Solution for pick & carry cranes has been perfected through innovations and years of experience. The solution uses a pressure sensor to calculate the lifted load. This method helps calculate the load on all the crane hooks, either fixed or moving. The solution is self-calibrating and eliminates the need for dead weights.
| Power supply | 9-30 V Crane Battery |
|---|---|
| Temperature range | Operating temperature range:
0° Celsius to +60° Celsius. Storage temperature range: -10° Celsius to +80° Celsius. |
| Accuracy | + /- 5% or better. |
| Data logger facility | Storage capacity up to 100000 lift data |
| Relay output (for cut-off) | 12V or 24V |
| IP protection | IP 65 |
| Serial port output | RS232 output (optional) |
