SLI/LMI/RCI Solution for
Lorry-Loader Crane
USP’s
Lifted-load display
Multi-lingual annunciation
Easy to install
Radius display
Hooter
Mobile app

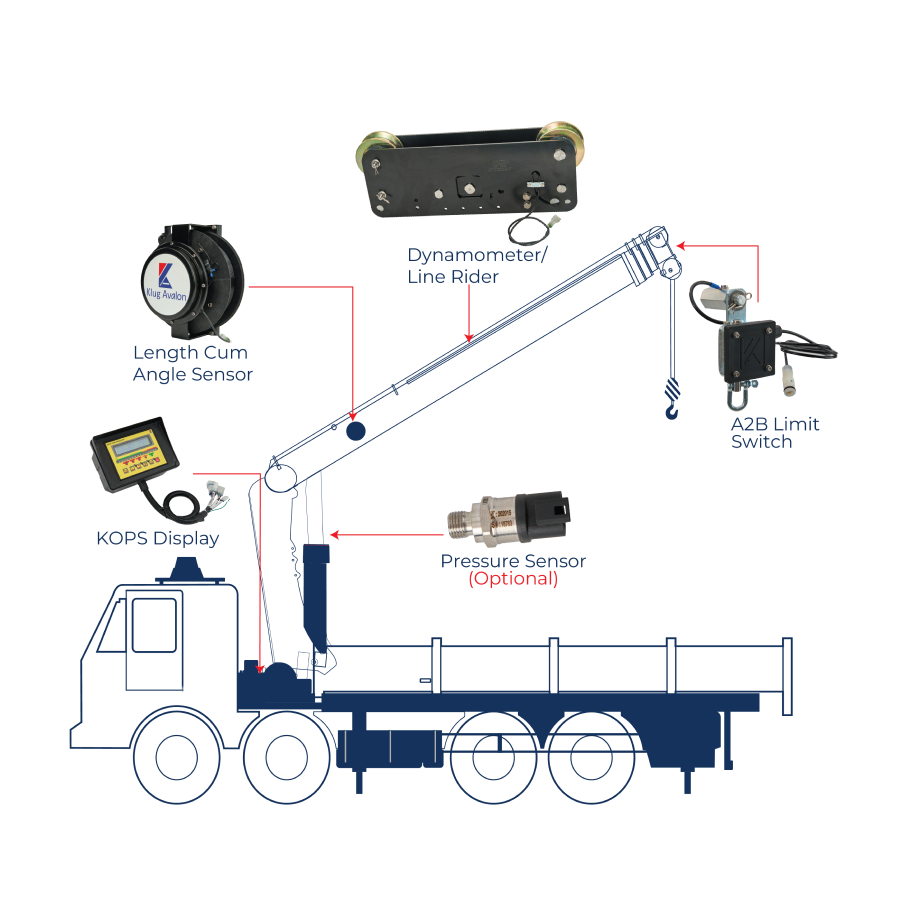

Klug Avalon’s SLI Solution for lorry-loader cranes ensures comprehensive safety in lorry-loading operations. The solution measures the pressure to calculate the lifted load. The working capacity is calculated based on various parameters like boom angle and radius. This delivers accurate load measurements and eliminates the risk of overloading. The solution is self-calibrating and does not need any dead weight for calibration.
Pressure-based load measurement (optional)
- Dead weights not required for calibration.
- No welding of load sensor to the crane boom. This prevents boom damage.
- Line-rider (dynamometer) is not required. This prevents wire-rope wear & tear.
- High accuracy of load measurement.
Technical specifications
| Power supply | 9-30 V Crane Battery |
| 9-30 V Crane Battery | Operating temperature range: 0° Celsius to +60° Celsius. Storage temperature range: -10° Celsius to +80° Celsius. |
| Accuracy | /- 5% or better. |
| Data logger facility | Storage capacity up to 100000 lift data |
| Relay output (for cut-off) | 12V or 24V |
| IP protection | IP 65 |
| Serial port output | RS232 output (optional) |
