SLI/LMI/RCI Solution for
Factory Forklift
USP’s
Lifted-load display
Multi-lingual annunciation
Easy to install
Hooter
Mobile app

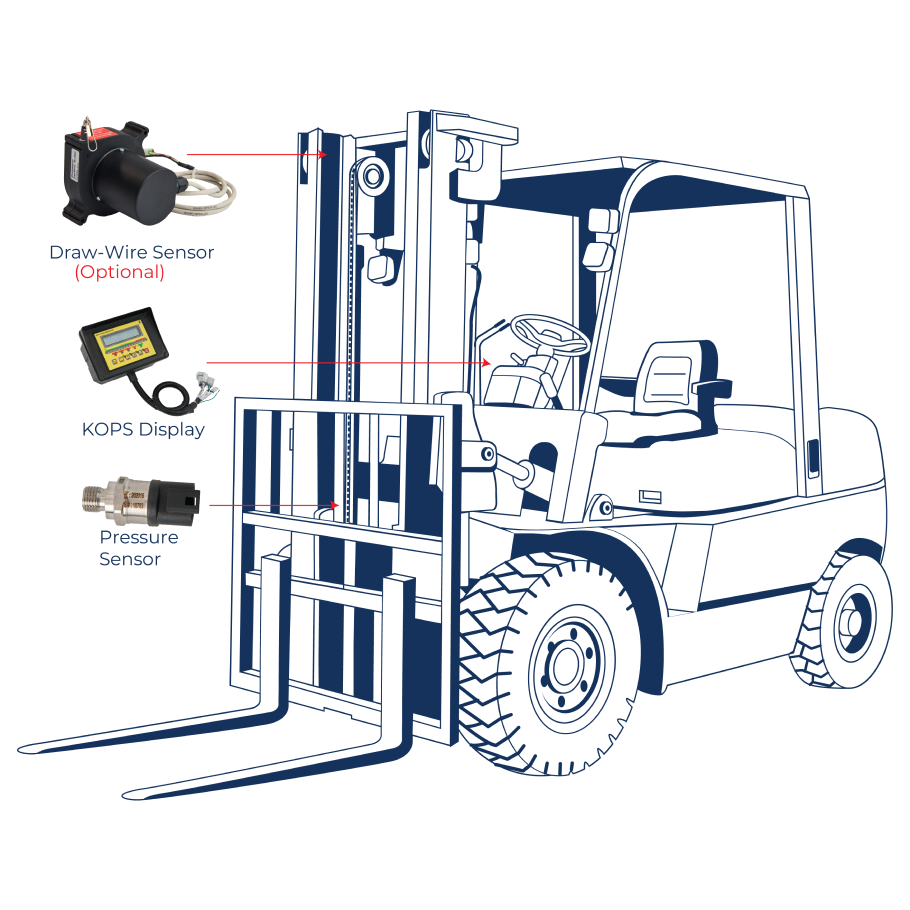

The Klug Avalon’s SLI Solution for forklifts uses pressure and draw-wire/height sensors (as and when required) to measure and display load weight and height accurately. This helps the operator stay within the machine’s safety limits and carefully manoeuver the factory’s indoor layout.
Additional draw-wire sensor (height sensor) provided
Overcomes deration in lifting capacity caused by increased height and ensures safe working load calculation.*
* Height sensor integration increases lead time for delivery.
Technical specifications
| Power supply | 9-30 V Crane Battery |
| 9-30 V Crane Battery | Operating temperature range: 0° Celsius to +60° Celsius. Storage temperature range: -10° Celsius to +80° Celsius. |
| Accuracy | /- 5% or better. |
| Data logger facility | Storage capacity up to 100000 lift data |
| Relay output (for cut-off) | 12V or 24V |
| IP protection | IP 65 |
| Serial port output | RS232 output (optional) |
