SLI/LMI/RCI Solution for
EOT Crane

EOT Crane

USPs

  • Icon Load Display
    Lifted-load display
  • Icon Easy to install
    Easy to install
  • Icon Hooter
    Hooter
  • Icon Mobile app
    Mobile app

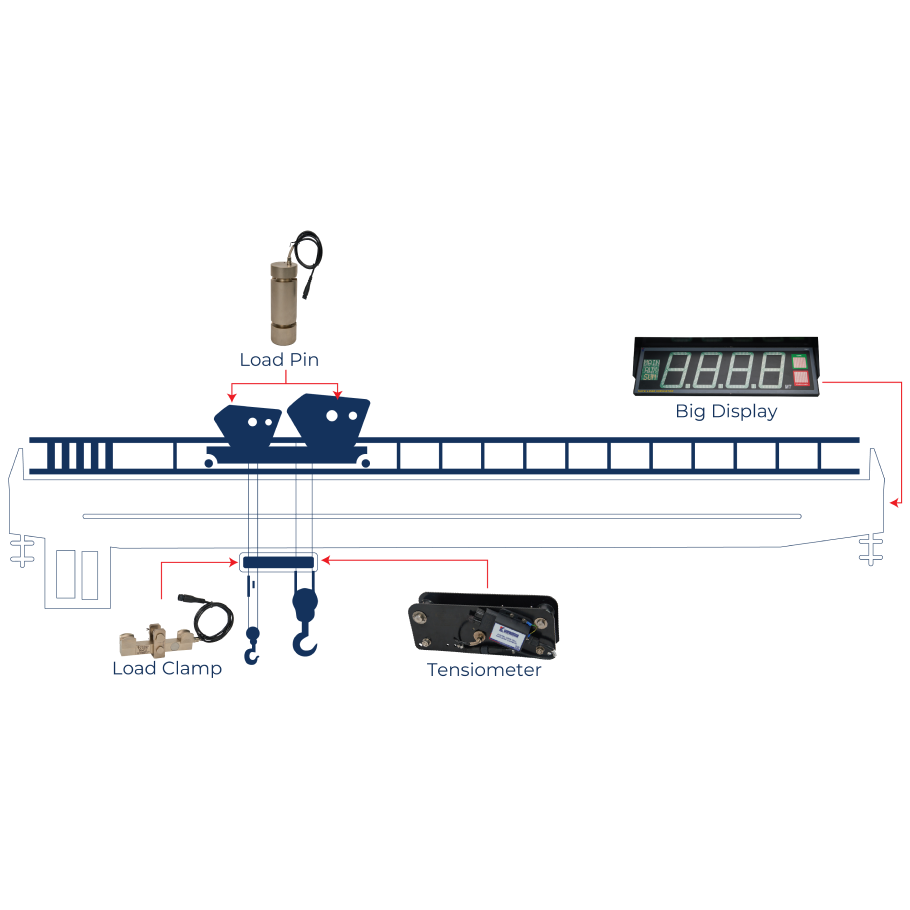

Klug Avalon's SLI Solution for EOT cranes focuses on precision in load measurement and easy visibility and audibility of annunciations. Multi-parameter annunciations on multiple screens allow the operator to access information easily. It also provides load measurement for tandem lifting.

Load measuring using load pin (Optional)

An additional load pin, usually customised for the crane, provided for sensing the lifted load.*

This enhances load measurement accuracy and eliminates the need for a load clamp, thus preventing wear and tear of the wire rope.

Auxiliary hook upgrade

  • A load sensor can be added to display the value of a load lifted by an auxiliary hook.
  • Tandem lifting sensing is available through the SUM option with CANBUS technology.

Additional indication options

  • Big LED Display: Standard 4-digit display with 4" character size. This is upgradable to 8 digits. Display is also available in character sizes of 8" and 12".
  • OLP Display: Big 2-colour non-numeric display. Indicates with green and red lights. Used for communicating the safety of the crane, weight, approach, and slack.
  • SLS Display: Small 2-colour (green and red) non-numeric display to indicate safe-load.

Alternative solution for EOT cranes

Wind speed system for EOT cranes.

* Customisation can increase lead time.

Technical specifications

Power supply 110V AC /230V AC
Temperature range Operating temperature range:
0° C to +60° C

Storage temperature range:
-10° C to +80° C
Accuracy +/- 5% of crane capacity
Relay output (for cut-off) Potential free contact
IP protection IP 65
Analog output 4 - 20 mA
