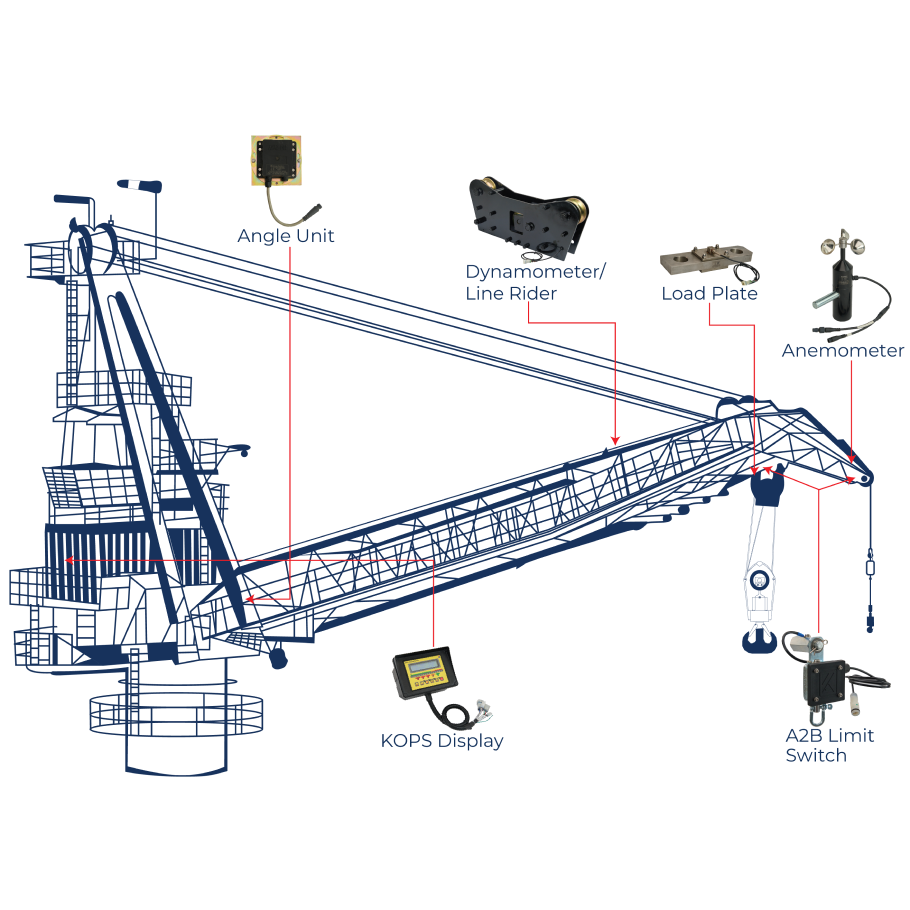

Klug Avalon's SLI Solution for deck cranes provides an option of multiple load-measuring sensors to achieve greater accuracy in load-weight measurement. An additional windspeed sensor ensures the safety of the crane, the ship, and the load in windy conditions. Precise monitoring of load, radius and the wind helps prevent blocking and collision incidents.
Additionally, a load pin/ plate/clamp, usually customised for every crane can be provided for sensing
the lifted load. *
This enables greater accuracy in lifted load calculation and eliminates the need for a line rider (dynamometer), thus preventing wear and tear of the wire rope.
An additional integrated anemometer (windspeed sensor) provided for warning in case of heavy winds.
* Customisation can increase lead time.
| Power supply | 9-30 V Crane Battery |
|---|---|
| Temperature range | Operating temperature range:
0° Celsius to +60° Celsius. Storage temperature range: -10° Celsius to +80° Celsius. |
| Accuracy | + /- 5% or better. |
| Data logger facility | Storage capacity up to 100000 lift data |
| Relay output (for cut-off) | 12V or 24V |
| IP protection | IP 65 |
| Serial port output | RS232 output (optional) |
