SLI/LMI/RCI Solution for
Articulated-Boom Crane

Articulated-Boom Crane

USPs

  • Icon Load Display
    Lifted-load display
  • Icon Multi-lingual annunciation
    Multi-lingual annunciation
  • Icon Easy to install
    Easy to install
  • Icon Hooter
    Hooter
  • Icon Mobile app
    Mobile app

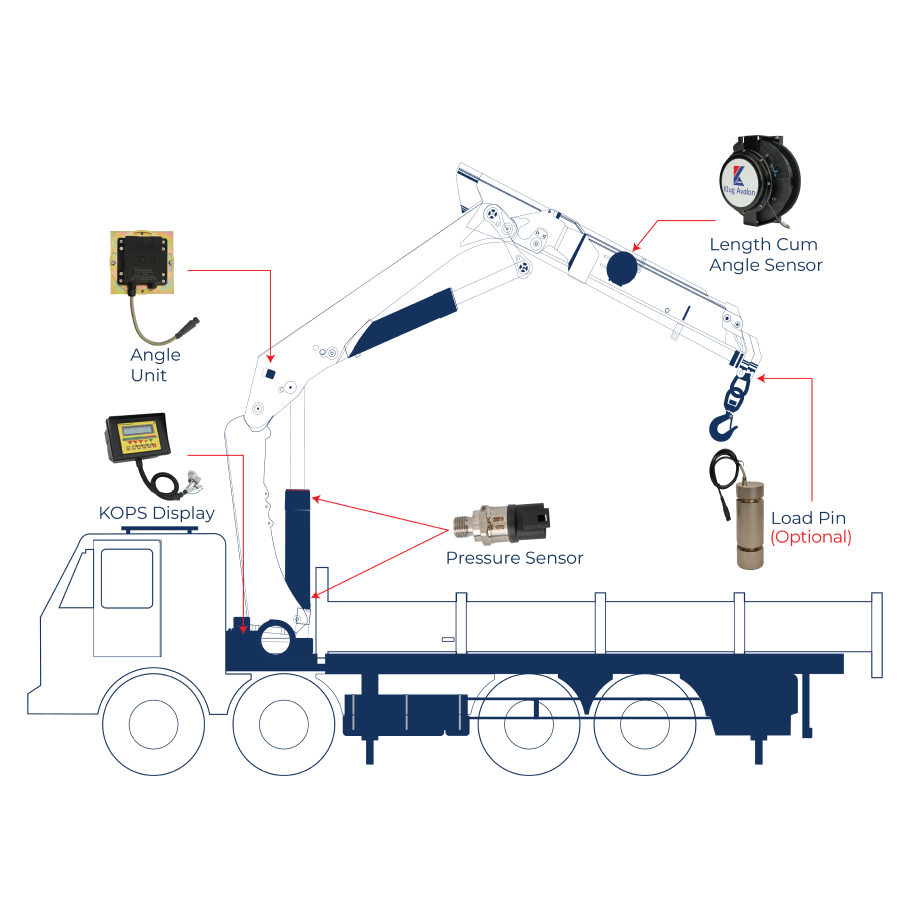

Klug Avalon's SLI Solution for articulated-boom cranes has been perfected with the help of several innovations and long years of experience. A significant advantage of this solution comes from using a pressure sensor to calculate the lifted load. Along with load measurement, it also displays the hook radius for ease of operations.


Pressure-based load measurement

  • Dead weights not required for calibration.
  • No welding of load sensor to the crane boom. This prevents boom damage.
  • Load monitoring for all hooks in case of multiple hooks/ configurations.
  • Line-rider (dynamometer) is not required. This prevents wire-rope wear & tear.
  • High accuracy of load measurement.

Optional load measurement facility

An additional load pin, usually customised for the crane, provided for sensing the lifted load.∗

Enhances load measurement accuracy and eliminates the need for a pressure sensor.

* Customisation can increase lead time.

Technical specifications

Power supply 9-30 V Crane Battery
Temperature range Operating temperature range:
0° Celsius to +60° Celsius.
Storage temperature range:
-10° Celsius to +80° Celsius.
Accuracy + /- 5% or better.
Data logger facility Storage capacity up to 100000 lift data
Relay output (for cut-off) 12V or 24V
IP protection IP 65
Serial port output RS232 output (optional)
