SLI/LMI/RCI Solution for
Aerial Work Platform
USP’s
Lifted-load display
Multi-lingual annunciation
Easy to install
Radius display
Hooter
Mobile app

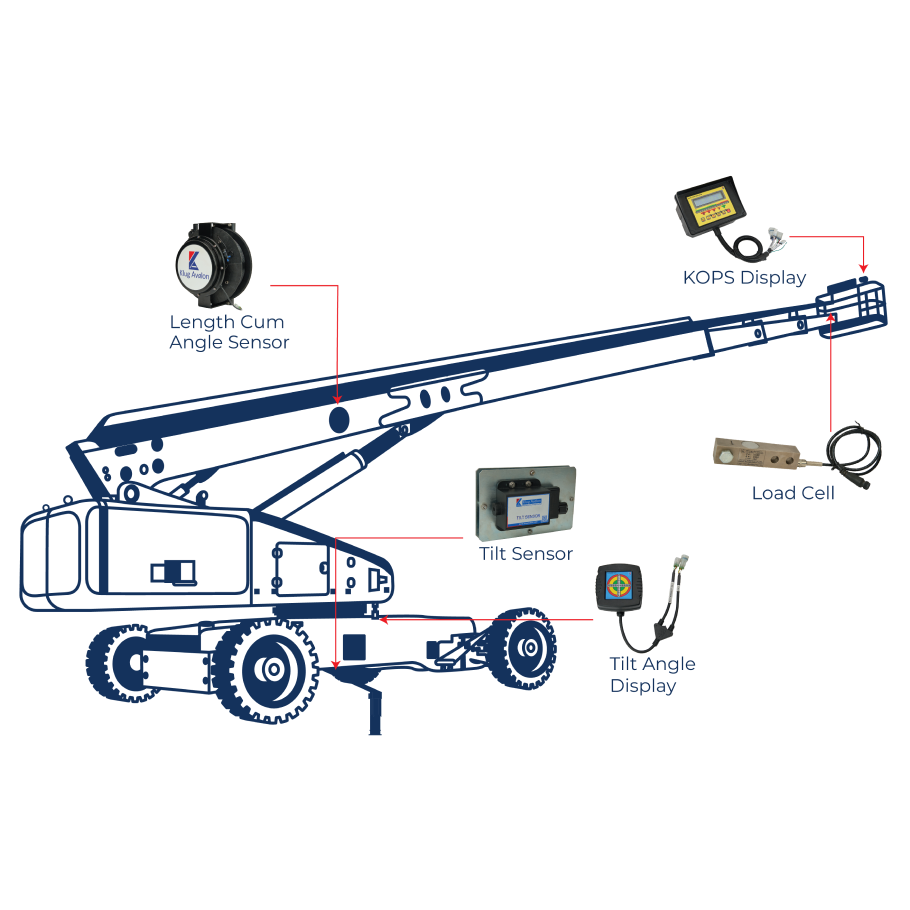

Klug Avalon’s SLI Solution addresses safety risks associated with overweight, load-collision and equipment stability of aerial work platforms. A load sensor and a draw wire sensor are provided to eliminate the risk of over-loading, while an A2B switch ensures collision-free operations. The application also offers the option to include a wind sensor, outrigger sensor, and tilt sensor to monitor the stability of the equipment.
Additional integrable options
- Integrated anemometer (windspeed sensor) to warn in case of heavy winds.
- Integrated anemometer (windspeed sensor) to warn in case of heavy winds.
- Tilt sensor to identify the inclination of the equipment.
Technical specifications
| Power supply | 9-30 V Crane Battery |
| 9-30 V Crane Battery | Operating temperature range: 0° Celsius to +60° Celsius. Storage temperature range: -10° Celsius to +80° Celsius. |
| Accuracy | /- 5% or better. |
| Data logger facility | Storage capacity up to 100000 lift data |
| Relay output (for cut-off) | 12V or 24V |
| IP protection | IP 65 |
| Serial port output | RS232 output (optional) |
